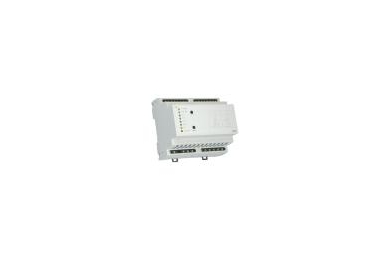

Controlled dimmer DIM-6

Designed for RLC dimming lights, also available for appliance switching

DIM-6 can be controlled by: button(parallel button connection), external potentiometer, analog signal 0-10 V (1-10 V), INELS system bus.

Actuator manages output 230 V AC, controlled by 1 semi-conductor. Maximum output power is 2000 VA

power range can be increased up to 10000 VA , by module DIM6-3M-P

Electronic overcurrent protection, overvoltage and short-circuit protection.

Protection against over-heating inside device - switch off output+signalize overheat by fl ashing red LED.

6-MODULE version, DIN rail mounting
