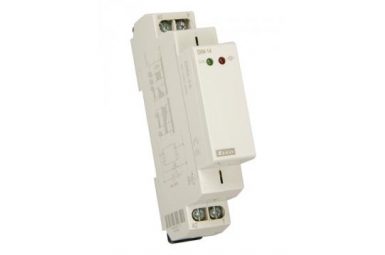

Controlled dimmer DIM-14
dims all types of loads, in-built protection against temperature and current overload, electronic fuse
Designed for dimming of incandescent bulbs and halogen lights with wound or electronic transformer

For switching and dimming of lights, control inputs for a button

Short impulse switches ON/OFF, long impulse (>0.5s) enables gradual light intensity setting

Last intensity level is stored in memory when switched off

Voltage range: AC 230 V

Output without contacts: 2x MOSFET

LED output indicator with any level of brightness possibility of parallel connection of control buttons

Resistive, inductive or capacitive load, up to 300 W, for a short term up to 500 W

1-MODULE, DIN rail mounting

Electronic overvoltage protection

Protection against over-heating inside the device - output off
