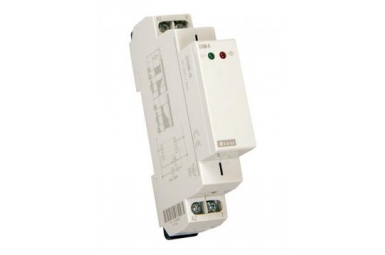

Controlled dimmer DIM-5
control by a button, short pressing ON/OFF, long pressing regulates brightness, memory storing
Designated for dimming el. bulbs, halogen lights and halogen lights with winding transformers

For switching and dimming lights in corridors, stairways... control input for push-buttons (parallel connection possible)

Short press turns light on/off , long press (> 0.5 s) provides dim up / dim down.

When switched off , brightness level is stored in a memory and when On again it restores last brightness level

Voltage range: AC 230 V

Contactless output, triac 2A/ 500 VA

LED output indication (with any level of brightness)

Possibility to connect control buttons in parallel

1-MODULE, DIN rail mounting

Clamp terminals

Protection against over-heating inside the product - switches output off + signalizes overheating by LED fl ashing
