Designated for dimming el. bulbs, halogen lights and halogen lights with winding transformers

Intelligent control of halogen lights, function of gradual switching on and dimming

Controlling inputs for push button and switch

Values are set by potentiometers on front panel of the product, adjustable:
- maximum dim-up
- speed (fl uency) of dim-up
- speed (fl uency) of dim-down
- time for which a light is on with maximum dim-up

All time intervals can be adapted according to a request

Output without contact: 1x triac

Load AC 5b (el. bulbs) 500 W

Clamp terminals

Parallel connection of controlling pushbuttons is possible

Protection against over-temperature inside the product - switches output off + signalizes overheating by LED fl ashing

Note: possibility of start and fi nish adjustment up on 1 hour, device has description DIM-2 1h

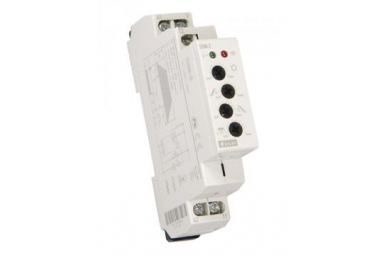

1-MODULE, DIN rail mounting
